1. Local Setup, Development and Testing

In this chapter, you will set up your local Backstage environment, learn how to start the application in development mode, and explore its core features.

This hands-on introduction will give you the foundation needed to customize and extend Backstage for your organization.

Prerequisites

Before you begin, ensure you have the following installed on your local machine:

• Node.js: Version 22 or 24 (Recommendation: nvm or volta)
• Package Manager: Yarn
• Source Control: Git
• Container: Docker or Podman

Task 1.1: Create a New Backstage App

Backstage provides a CLI tool to scaffold a new application quickly. Let’s create your first Backstage instance.

First create a folder for the techlab inside your workspaces folder or in a temporary directory.

Run the following command to create a new Backstage app:

npx -y @backstage/create-app@0.8.2

When prompted, enter a name for your app (my-backstage-app).

The output should look similar to:

  ...
  copying       index.ts ✔

 Moving to final location:
  moving        my-backstage-app ✔
  fetching      yarn.lock seed ✔
  init          git repository ◜
 Installing dependencies:
  init          git repository ✔
  executing     yarn install ✔
  executing     yarn tsc ✔

🥇  Successfully created my-backstage-app


 All set! Now you might want to:
  Run the app: cd my-backstage-app && yarn start
  Set up the software catalog: https://backstage.io/docs/features/software-catalog/configuration
  Add authentication: https://backstage.io/docs/auth/

After the creation process is complete, navigate into your newly created app directory.

cd my-backstage-app

Explore the project structure. You should see:

• packages/app/ - Frontend React application
• packages/backend/ - Backend Node.js application
• app-config.yaml - Main configuration file
• catalog-info.yaml - Catalog entity for the Backstage app itself (will be explained later)

Task 1.2: Start Backstage in Development Mode

Now let’s start Backstage locally to see it in action.

Start both the frontend and backend in development mode:

yarn start

This command will:

• Start the backend on http://localhost:7007
• Start the frontend on http://localhost:3000
• Enable hot-reloading for development

If your browser did not open a tab, navigate to http://localhost:3000

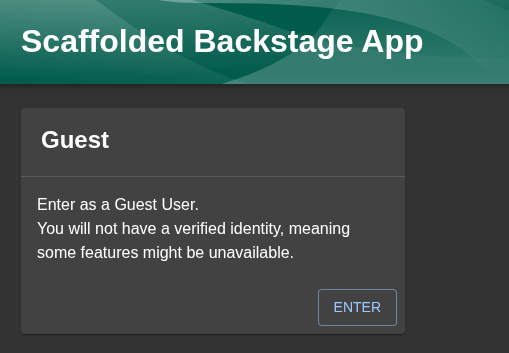

This should show the home page of your newly created Backstage application!

Click on the ENTER button.

You may see a warning message like:

You are currently using the legacy guest token...

Task 1.2.1: Explore the Default Interface

The default installation includes example entities to help you understand how Backstage organizes information.

Take a few minutes to explore the default Backstage interface.

Use the Left-Side vertical navigation to check out your Backstage instance with it’s example content:

1. Home (Catalog): The landing page and the catalog main page
2. APIs: Check out the APIs section
3. Docs: Explore the TechDocs section
4. Create: Look at the “Create” section (we’ll use this later for templates)
5. Search: Try to search for any content

Now you should have a first insight of the basic Backstage functionality.

Task 1.3: Understand the Configuration

Open the app-config.yaml file in your editor. This is the heart of your Backstage configuration.

Key sections to note:

app:
  title: Scaffolded Backstage App #(1)
  baseUrl: http://localhost:3000

organization:
  name: My Company #(2)

backend:
  baseUrl: http://localhost:7007 #(3)
  listen:
    port: 7007

catalog: #(4)
  import:
    entityFilename: catalog-info.yaml
  rules:
    - allow: [Component, System, API, Resource, Location, Group, User]

Explanation:

1. app.title: The name displayed in the browser tab
2. organization.name: Your company / organization name displayed in the UI.
3. backend.baseUrl: Where the backend API is running
4. catalog: Configuration for the software catalog

Task 1.3.1: Customize Your Backstage Instance

Let’s make a simple customization to make this instance your own.

Edit app-config.yaml and change the organization name:

organization:
  name: Your Company Name

Also update the app title:

app:
  title: Your Company Developer Portal

Save the file.

Thanks to hot-reloading, you should see the changes reflected in your browser within seconds!

Task 1.4: Run Tests

Unit Tests

Backstage comes with a jest testing setup out of the box.

Start the test suite:

yarn test

You should see a list with all available options.

No tests found related to files changed since last commit.
Press `a` to run all tests, or run Jest with `--watchAll`.

Watch Usage
 › Press a to run all tests.
 › Press f to run only failed tests.
 › Press p to filter by a filename regex pattern.
 › Press t to filter by a test name regex pattern.
 › Press q to quit watch mode.
 › Press Enter to trigger a test run.

Press a to run all tests and see, that all pass.

 PASS   app  packages/app/src/App.test.tsx
  App
    ✓ should render (33 ms)

Test Suites: 1 passed, 1 total
Tests:       1 passed, 1 total
Snapshots:   0 total
Time:        2.822 s, estimated 6 s
Ran all test suites.

For the moment there’s just a basic test to check that the setup is working.

To check the test coverage run:

yarn test:all

You will notice, that there are some lines of code not covered by any tests.

E2E Tests

For end-to-end tests a playwright setup is ready to use.

It will start your Backstage instance and run the tests against it.

yarn test:e2e

Task 1.5: Build for Production

While we’re developing locally, it’s useful to understand how to build Backstage for production.

Create a production build:

yarn build:all

This command performs several build steps:

1. TypeScript Compilation: Converts all TypeScript code (.ts, .tsx) to JavaScript
2. Frontend Bundling: Creates an optimized production bundle of the React application
   • Minifies JavaScript and CSS
   • Optimizes assets and images
   • Creates static files ready for deployment
3. Backend Bundling: Packages the Node.js backend application
   • Bundles all backend code and dependencies
   • Prepares the backend for deployment
4. Type Checking: Validates TypeScript types across the entire codebase

Summary

In this chapter, you:

• ✅ Created a new Backstage application
• ✅ Explored the default interface
• ✅ Made your first customization
• ✅ Ran tests and created a production build

Your local Backstage environment is now ready for the next steps!

In the next chapters, you’ll learn how to populate the catalog, create templates, and add plugins to make Backstage truly powerful for your organization.
